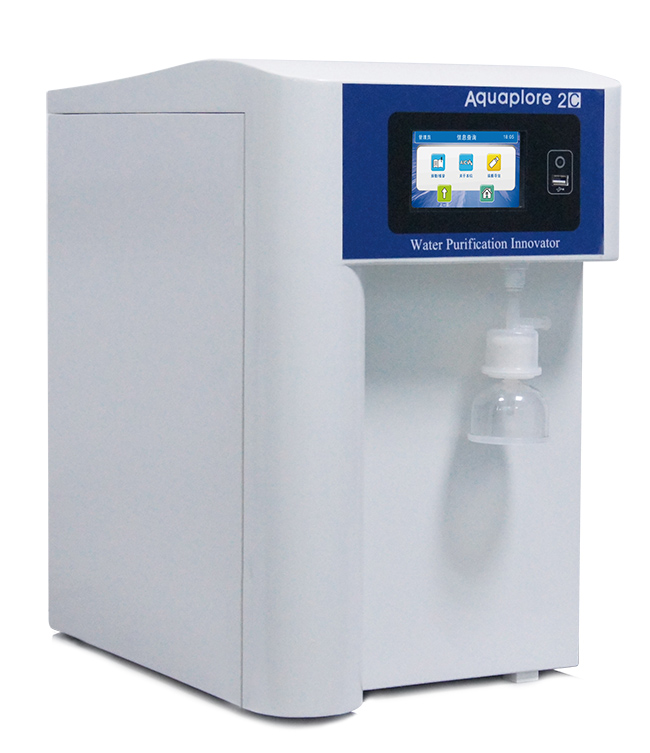

Aquaplore 2C

The easiest tertiary water supply solution

The Aquaplore 2C series ultrapure water machine uses pure water as the raw water to continuously produce ultrapure water that meets ASTM, ISO, CLSI, EP, and USP standards at a rate of up to 2 L/min. Equipped with high capacity purification filter cores, it can effectively reduce the frequency of replacement and water production costs. The system is equipped with intelligent autom- atic management software, which can monitor all water production parameters in real time to ensure the reliability of the water quality, and easily match different water purification systems to make your laboratory planning more flexible.

With Aquapore2C you can ......

  • Complete monitoring and management of key parameters in the purification process to ensure reliable water quality.
  • Choose the most suitable water withdrawal method for your needs from a wide range of water withdrawal modes.
  • Track individual user usage records with password login.
  • Easy operation on the touch screen through an intuitive human-machine graphical interface.
  • Save time on system management with A-Cloud cloud-based maintenance service.
 (Learn more)

Water quality
OR CE BE
Type I Water Resistivity (25°C ) 18.2MQ.cm 18.2MQ.cm 18.2MQ.cm
Total organic carbon2 (TOC)
(treated by DP-RO)		 — <3ppb <3ppb
Baecteeria2 — <0.001cfu/ml <0.001cfu/ml
Baecteerial endotoxin2 — — <0.001EU/ml
Particles（>0.2μm） <1/ml <1/ml <1/ml
Heay metal ions ≤0.1ppb ≤0.1ppb ≤0.1ppb
Silicon removal rate ＞99% ＞99% ＞99%
RNases2 — — <1pg/ml
DNases2 — — <4pg/ml
1. Under the condition of feed water TOC < 50ppb and proper operation conditions.
2. With UV device and ultra -precision filtration module, under regular cleaning and maintenance.
Water production volume specifications
Quantitative water wi thdrawal range     Quantitative water intake， accuracy of 500ml within土5ml， above 500ml 士1. 5%
Water intake requirements
Water Source     <10μS/cm
Temperature     2-35oC
Water inlet mode3 Connected to self-priming device Connected to self-priming device Connected to self-priming device
Flow rate — —     ≥120L/h
Pressure — —     1-3bar
Electricity requirement
Electricity input     100-240VAC，50-60Hz
System voltage     24VDC
System power     221W（max）
Noise level     <50dB
Size and weight
Dimension（H×W×D）     480×302×418mm
Packing weight     21Kg
*AlI information and descriptions on the official website represent only the general functions and parameters of the equipment, and are subject to the technical leaflets or bid documents provided by the company.
